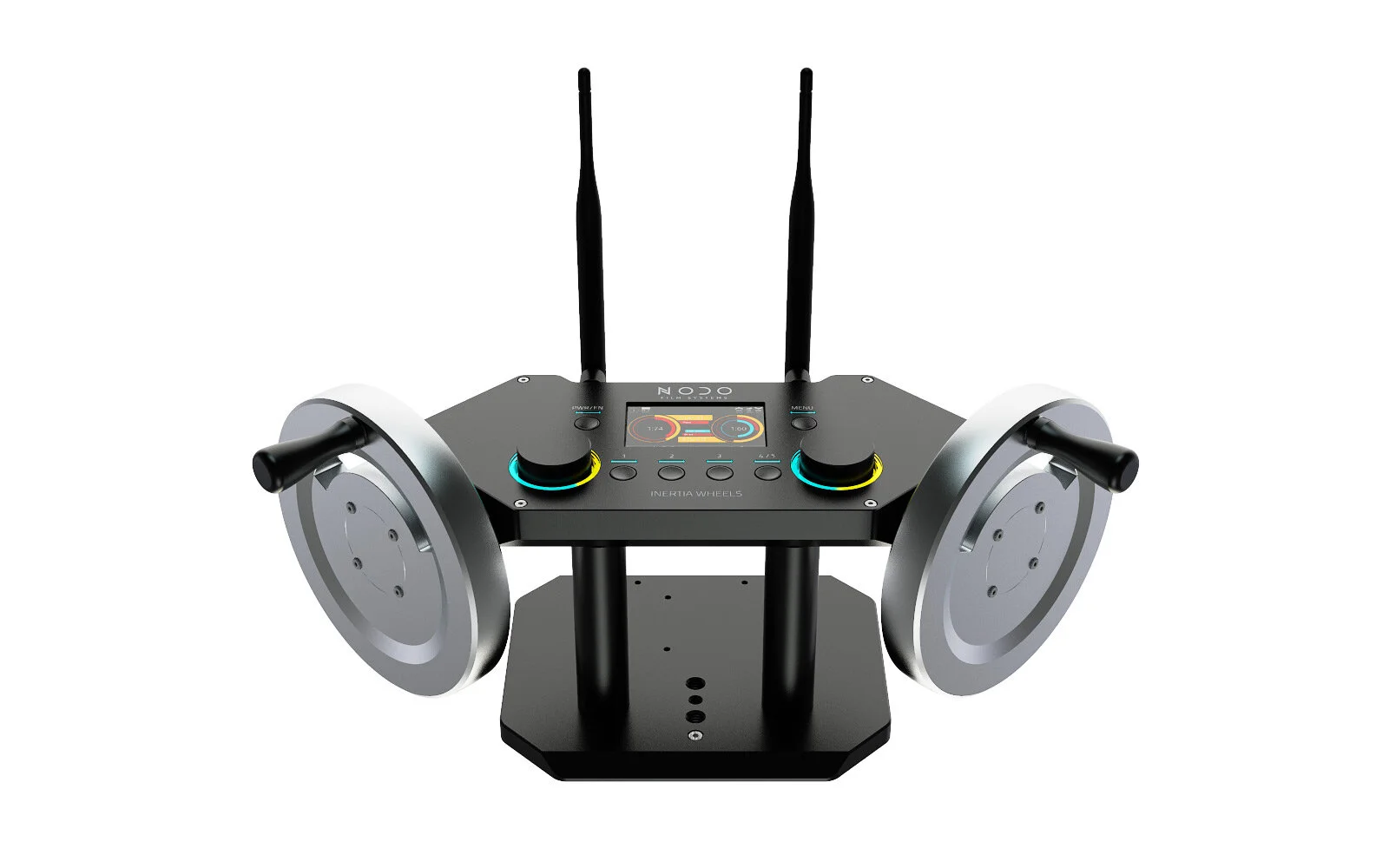

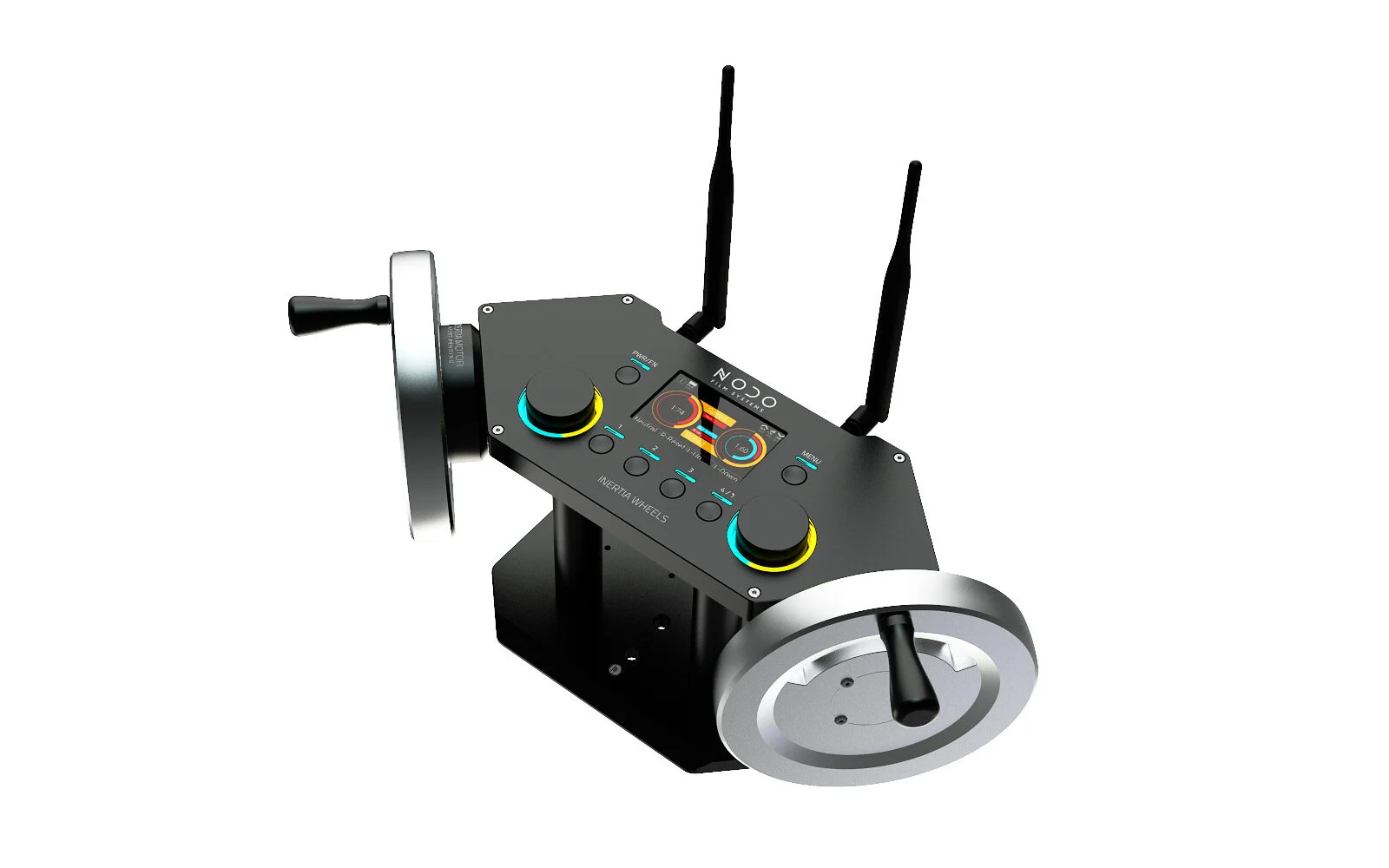

Nodo Film Systems Inertia Wheels 2-Axis
The NODO Inertia Wheels 2-Axis is a wireless long-range digital camera controller featuring proprietary Inertia Motors™ inside the wheels. The Inertia Wheels are compatible with Freefly MōVI and DJI Ronin line of gimbals as well as a range of other camera platforms. The controller has dual-band, long-range 400-950MHz+2.4GHz wireless communication beyond 1 mile with a fast refresh rate of 100Hz. Optional hardwire connection of up to 2000ft.
The NODO Inertia Wheels 2-Axis is a wireless long-range digital camera controller featuring proprietary Inertia Motors™ inside the wheels. The Inertia Wheels are compatible with Freefly MōVI and DJI Ronin line of gimbals as well as a range of other camera platforms. The controller has dual-band, long-range 400-950MHz+2.4GHz wireless communication beyond 1 mile with a fast refresh rate of 100Hz. Optional hardwire connection of up to 2000ft.
The NODO Inertia Wheels 2-Axis is a wireless long-range digital camera controller featuring proprietary Inertia Motors™ inside the wheels. The Inertia Wheels are compatible with Freefly MōVI and DJI Ronin line of gimbals as well as a range of other camera platforms. The controller has dual-band, long-range 400-950MHz+2.4GHz wireless communication beyond 1 mile with a fast refresh rate of 100Hz. Optional hardwire connection of up to 2000ft.
Features:
Features
Proprietary Adjustable Weighted Wheels
Wireless Long-Range Camera Controller or Wired
1 Mile Wireless Range
2000ft Wired Cable
Compatible with DJI Ronin, MōVI and many more
Optional 3rd Axis Wheel Q1 2020
10ms latency
Transmit on 434MHz, 868MHz, 915MHz
Receive on 2.4GHz
Built-in frequency scanner
The patented Inertia Motors™ enable the operator to adjust the “weightiness feel” of the physical wheels themselves. This provides not only a more enjoyable operating experience, but also the ability to choose a weight class that suits the shot—or switch mid-shot with a preset. The motors actively stabilize and smooth the wheel movements in the exact same way as a brass wheel, or adjust the inertia of the wheels to your unique style.
Adjustable Drag in Inertia Motors also provides added texture and response to the wheels. Other wheels use mechanical brake pads that can wear down over time. The Inertia Wheels drag is driven by contactless electromagnets, and drag presets can be saved and recalled instantly mid-shot.

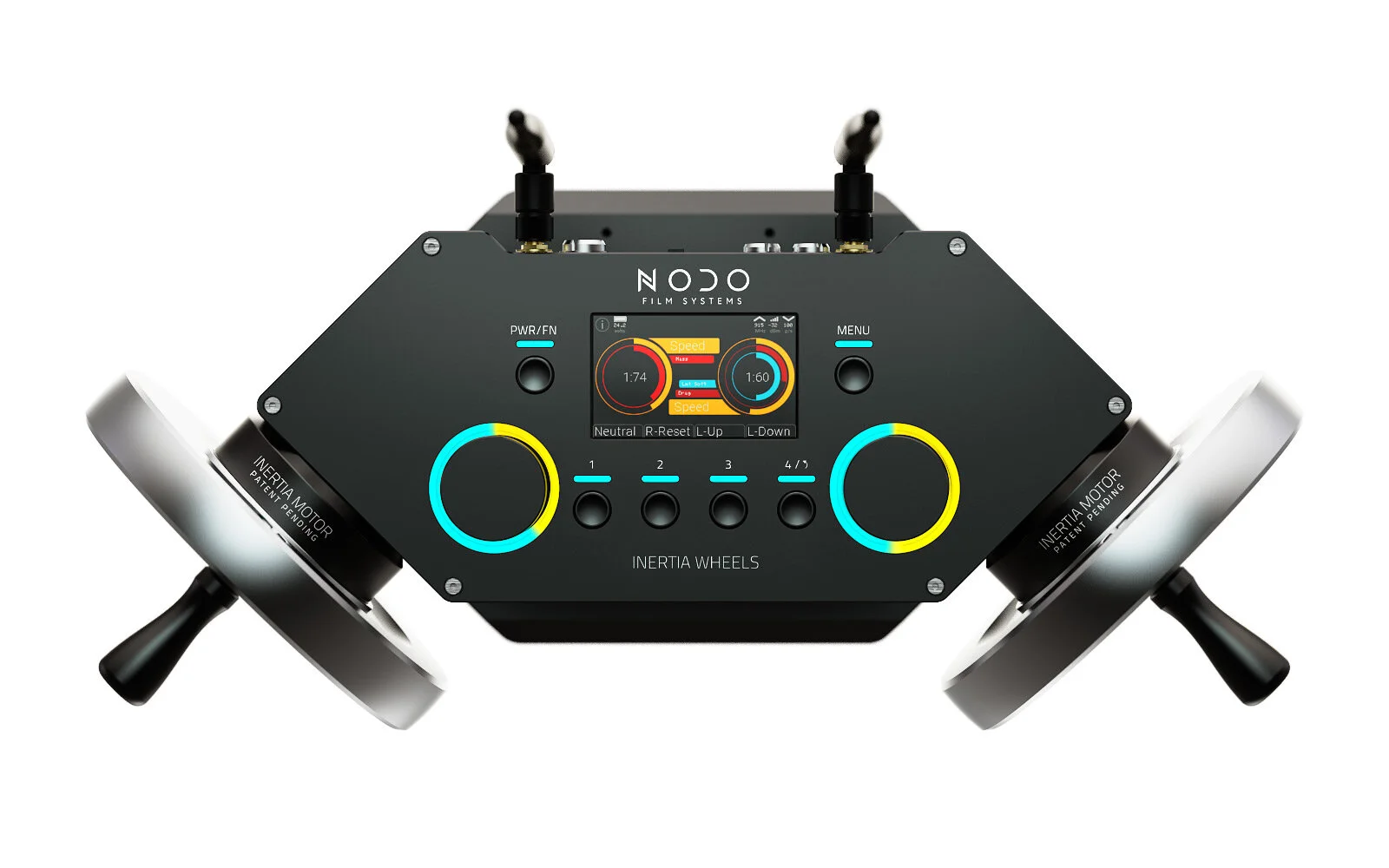

The Inertia Wheels feature a unique, powerful DASHBOARD for use while operating. Two knobs and 4 custom user buttons keep what you want to access during the shot within reach. Each axis has a control knob next to it. Assign features to the knobs such as speed, wheel mass, wheel drag, iris, and many more parameters from throughout the menu system. Clicking in on the knob toggles through what parameter is controlled as well as changes the LED lights to match so you can know what you’re controlling without even having to look at the screen.
Specifications:
Compatible with:
Freefly: MōVI Pro, MōVI XL, MōVI M5, M10, M15
DJI: Ronin 2, Ronin 1, Ronin MX, Ronin M, Ronin S
More coming…
Input/Output:
Power: 10-35v DC Lemo Port
Data: 2x UART Lemo Ports
Hardwire: 4-Pin Molex
Micro USB 2.0
Wireless:
Range = 1 Miles
Uplink: 400-500 and 800-1000 MHz
Downlink: 2.4Ghz
Physical:
Weight: 12lbs
Battery Mounting Patterns: Gold Plate + V-Lock
Base Holes: 4x 3/8-16 & 4x 1/4-20
4x Rubber Feet
3x Mitchell Mount Key Way Holes at 0°, 45° and 90°
INCLUDES:
Inertia Wheels 2-Axis
Wireless Receiver
30v AC-DC Power Supply and Cable
D-Tap Power Cable - 18in
Foam (fits SKB 2011-8 Case)
Com cable for connection to Freefly Gimbals
S-Bus Cable for connection to DJI and S-Bus Gimbals
20ft Hardwire Cable
2.4 GHz TX Antenna
900 MHz TX Antenna
900 MHz RX Antenna
