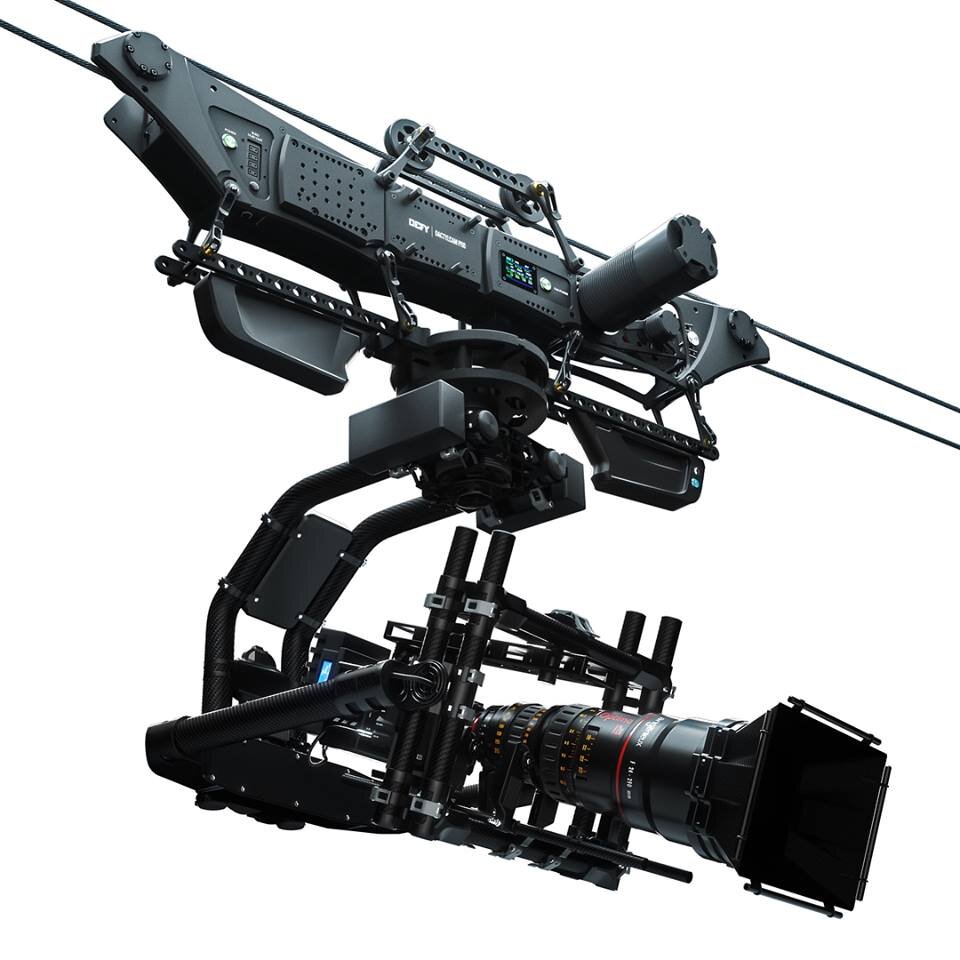

MoVI XL Only - No Case

FEATURES:

• Custom in house designed high torque direct drive motors

• Axis locks for easy ground handling / balancing

• Custom motor drives with high resolution encoders

• Capable of performing at extreme speeds (75+mph)

• Accessory power

• Integrate Focus / Iris / Zoom motor drivers

• Integrated control of Red cameras via RCP

• 3+ hour runtime powering gimbal and camera with onboard batteries (sold separately)

• Completely wireless operation (power, video, control) allows for 1 minute changes from camera car to crane to cable cam

• Underslung or overslung mounting

• Compatible with Freefly Ecosystem - MōVI Controller, MIMIC, Pilot

• 50lb max payload

• Capable of traveling as excess baggage on airlines

• Quick Release system (Optional)

• Travel case with custom cut foam insert (Optional)

• Modular construction

• Internal Wiring

• 2 second boot time

• 10 second full system autotune (no more manual tuning!)

• Integrated screen and menu system

• iOS and Android App for control, configuration, and feedback

Specifications

• Weight (w/o batteries): 25.26lb

• Camera cage dimensions: 399 x 255 x 289mm (L*W*H)

• Maximum payload: 50lb (22.67Kg)

In the box

• MōVI XL Gimbal (in a cardboard box)

• XL Top Rail

• MōVI XL Accessory Bag

  • Fuse Mini 297 32V 30A (qty=3)

  • Fuse Mini 297 32V 20A (qty=2)

  • Fuse Mini 297 32V 10A (qty=1)

  • T-Handle Hex Key - 4 mm (qty=1)

  • Bolt M4 x 10 SHCS (qty=8)

  • Bolt ¼-20 x ½ (qty=4)

  • 1/4-20 x 0.5 SHCS (qty= 8)

  • Aux UART to FRX (qty=1)

  • Harness Hub to TSU Power (qty=1)

  • 2.0MM Assy - Custom Hex Driver (qty=1)

  • 2.5MM Assy - Custom Hex Driver (qty=1)

  • 3.0MM Assy - Custom Hex Driver (qty=1)
